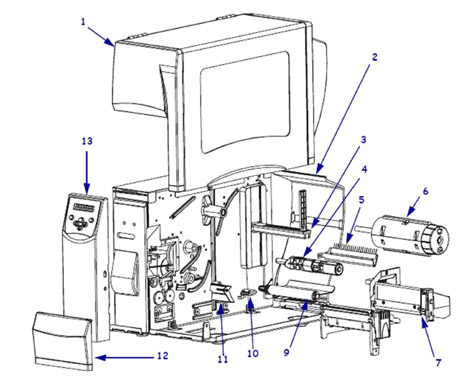

Peças Zebra S4M                           loja lservice


1 Media Door, S4M G20070M
2 Rear Lower Cover 20053
3 Media Hanger Assy. Kit S4M G20069M
4 Ribbon Supply Spindle Assy. Kit, S4M G77085M
5 Static Brush Assy Kit, Z4M+ & S4M G77302M
6 Ribbon Take-Up Spindle Assy. Kit, S4M 20004M
7 203 dpi Entire Print Mechanism Kit G20067-104M
7 300 dpi Entire Print Mechanism Kit G20067-106M
9 Kit Maint Dancer, Z4M & S4M 77238M
10 Ribbon/Head-Open Sensor Assy. Kit G77767M
11 Kit Maint. Media Sensor (Transmissive) G77752M
12 Peel Option Lower Front Cover 20039
12 Tear Option Lower Front Cover 20038
13 Control Panel includes membrane G20060M



esquema eletrico s4m

1 Electronics Cover S4M G20071M
2 Washer .379 X 0.53 X 0.056 Qty of 25 HW78812
3 Ribbon Spindle Take-Up Clutch Kit G20001M 1
4 Compound Gear included in drive system kit 20002M 20002M
5 Intermediate Gear included in drive system kit 20002M 20002M
6 Compound Pulley included in drive system kit 20002M 20002M
7 Drive Belt 203 Dpi 139T 20006
7 Drive Belt 300 Dpi 128T 20005
8 Stepper Motor Assy. With Gear 20008M
9 Main Logic Board 4MB 28322-001M
9 Main Logic Board 64MB 28322-002M
10 Power enhanced board G28420-001M
11 Power Supply Maint. Kit G29600M

esquema eletrico s4m

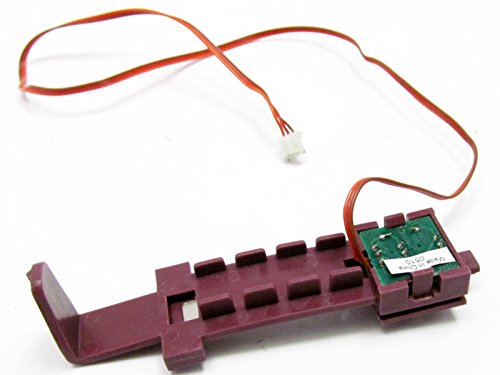

Reflective Media Sensor Assy
S4M & Z4M+ G77807M

G77807M
1 Screw, Printhead Mounting, QTY OF 5 HW77047 5
2 Pressure Dials and Springs G77172M 2
3 203 dpi Printhead S4M G41400M
3 300 dpi Printhead S4M G41401M
4 Magnetic Latch 77660 1
5 Ribbon Strip Plate 77049-104 1
6 Washer 0.250 X 0.125 X 0.023 (Qty of 25) HW79041 25
7 Screw M3 X 0.5 X 6 (Qty of 25) HW78809 25
8 Kit Maint Print Mech Latch ZxM+ & S4M G77112M

esquema eletrico s4m
Platen Roller Kit,
S4M G77023M
